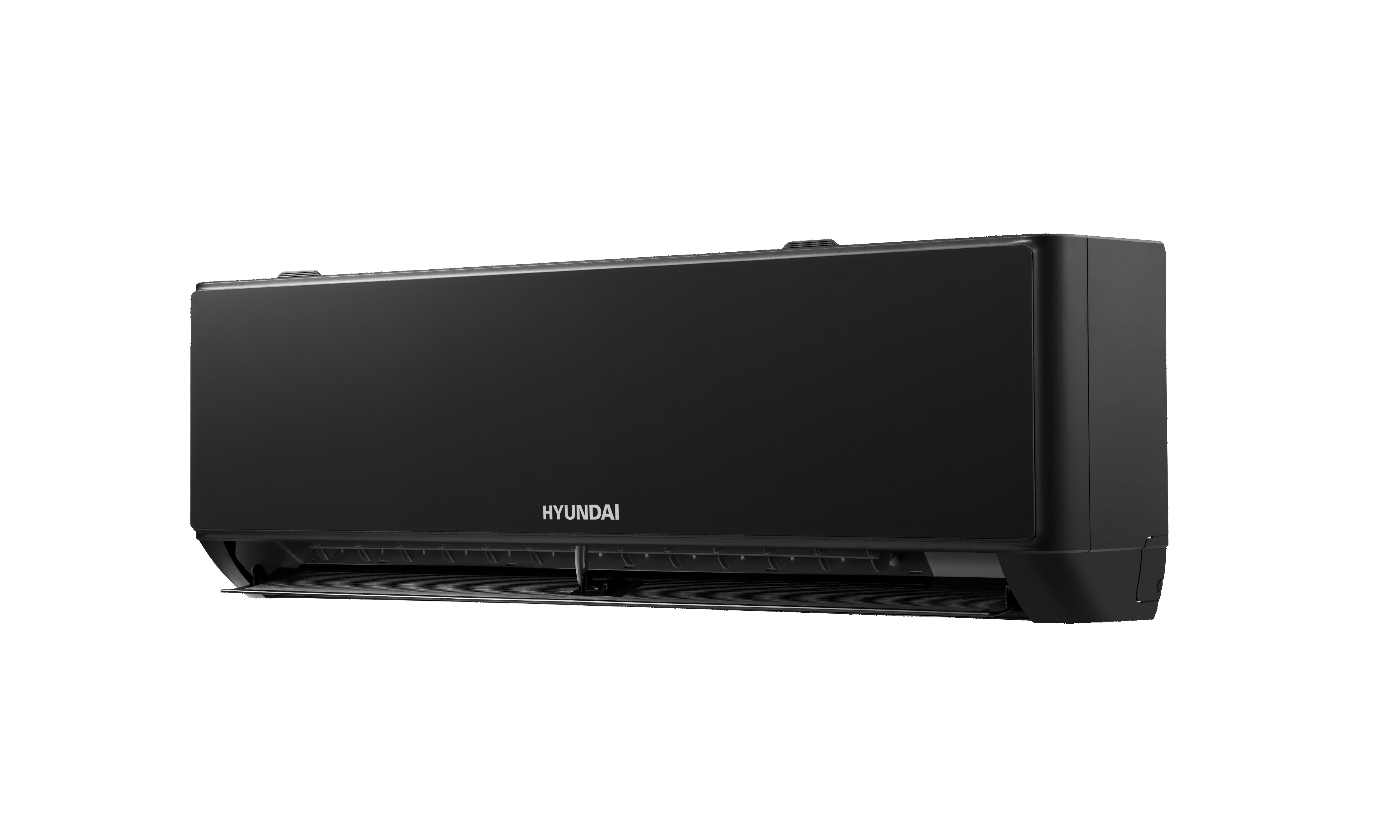

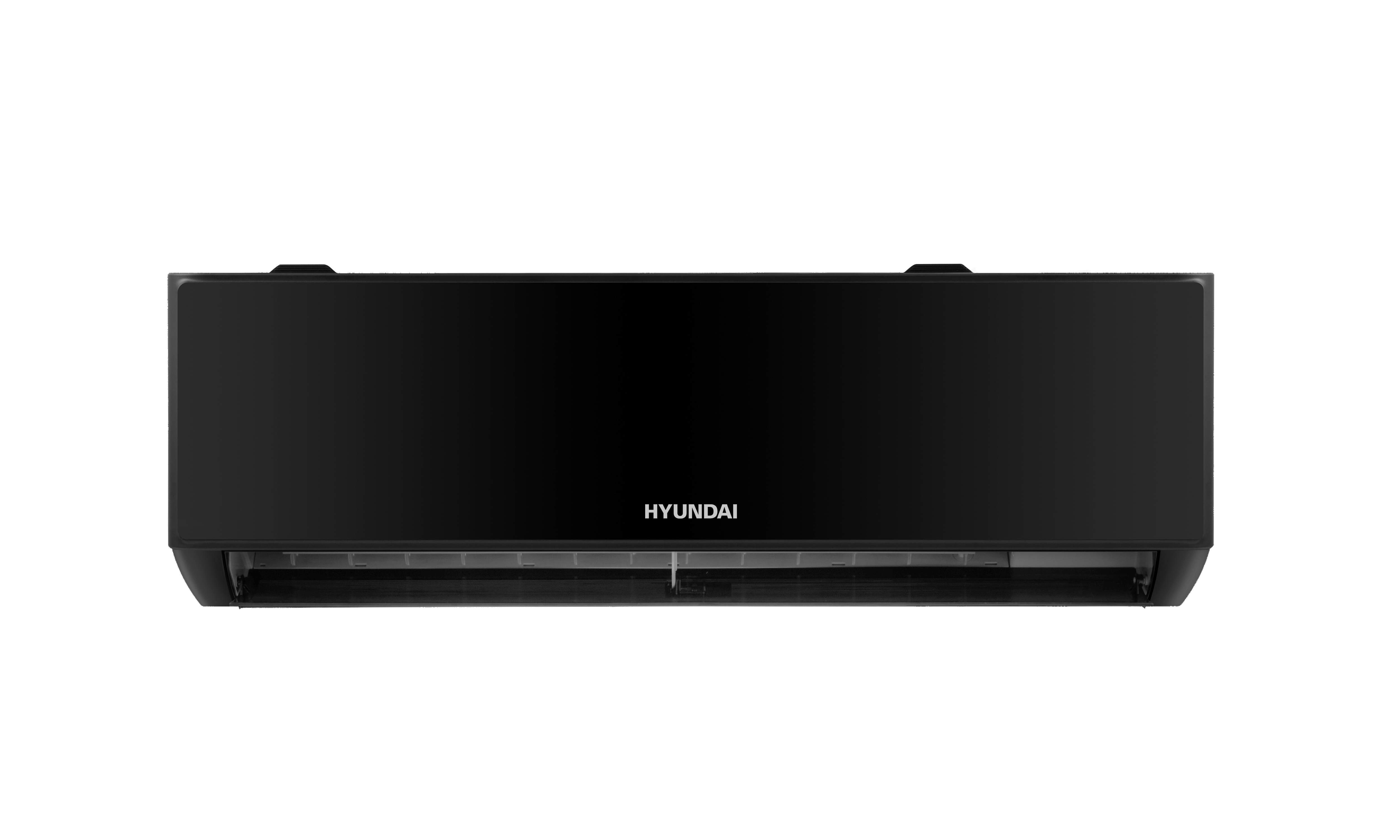

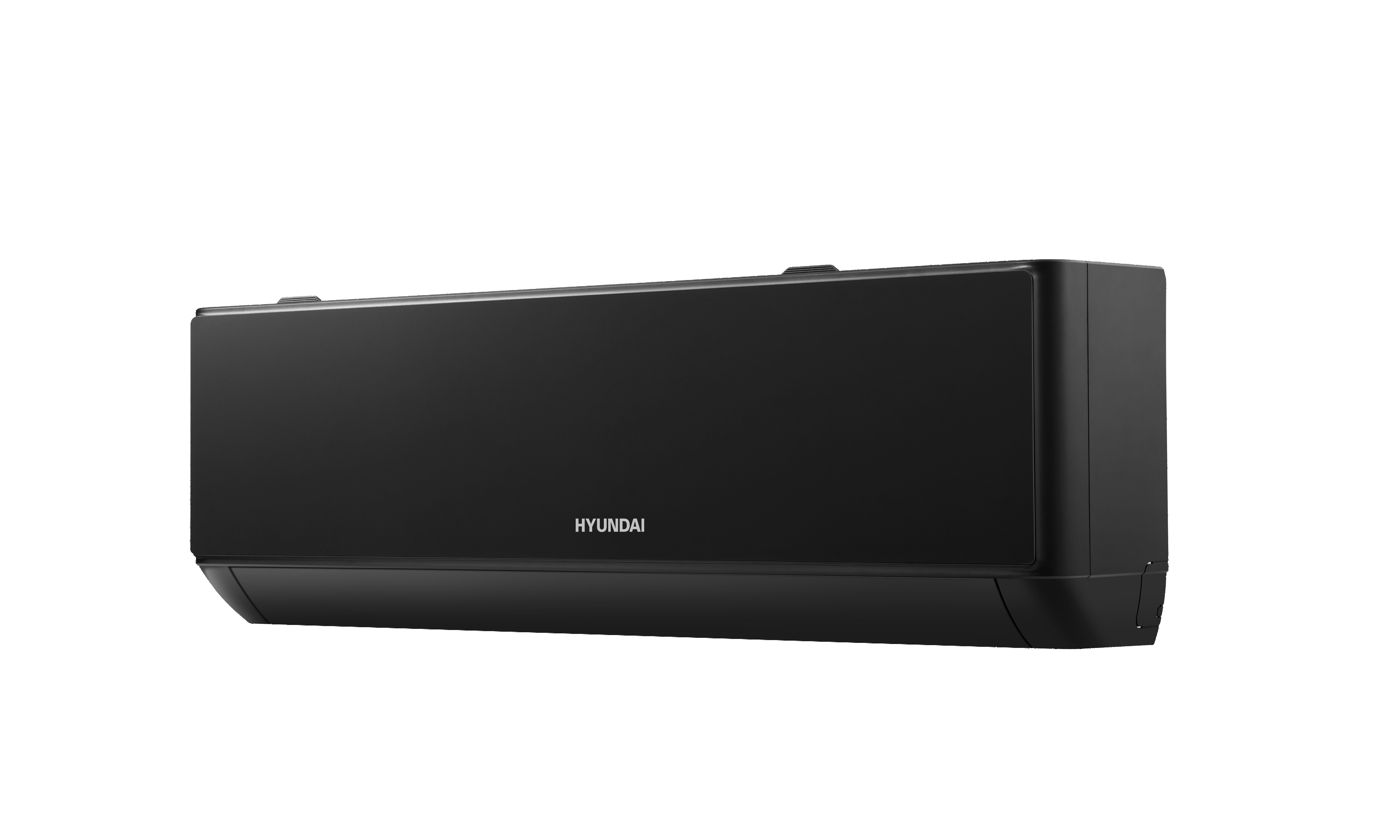

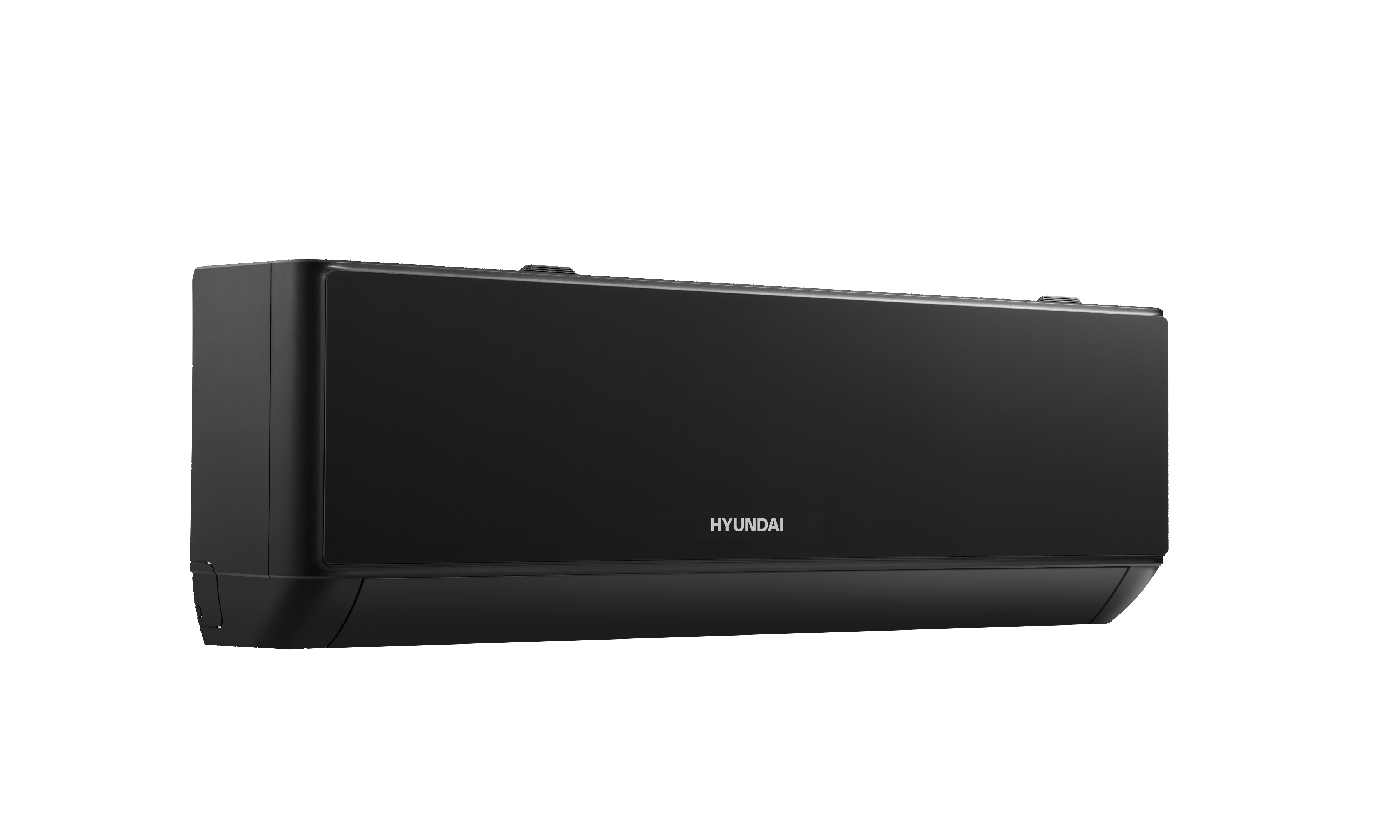

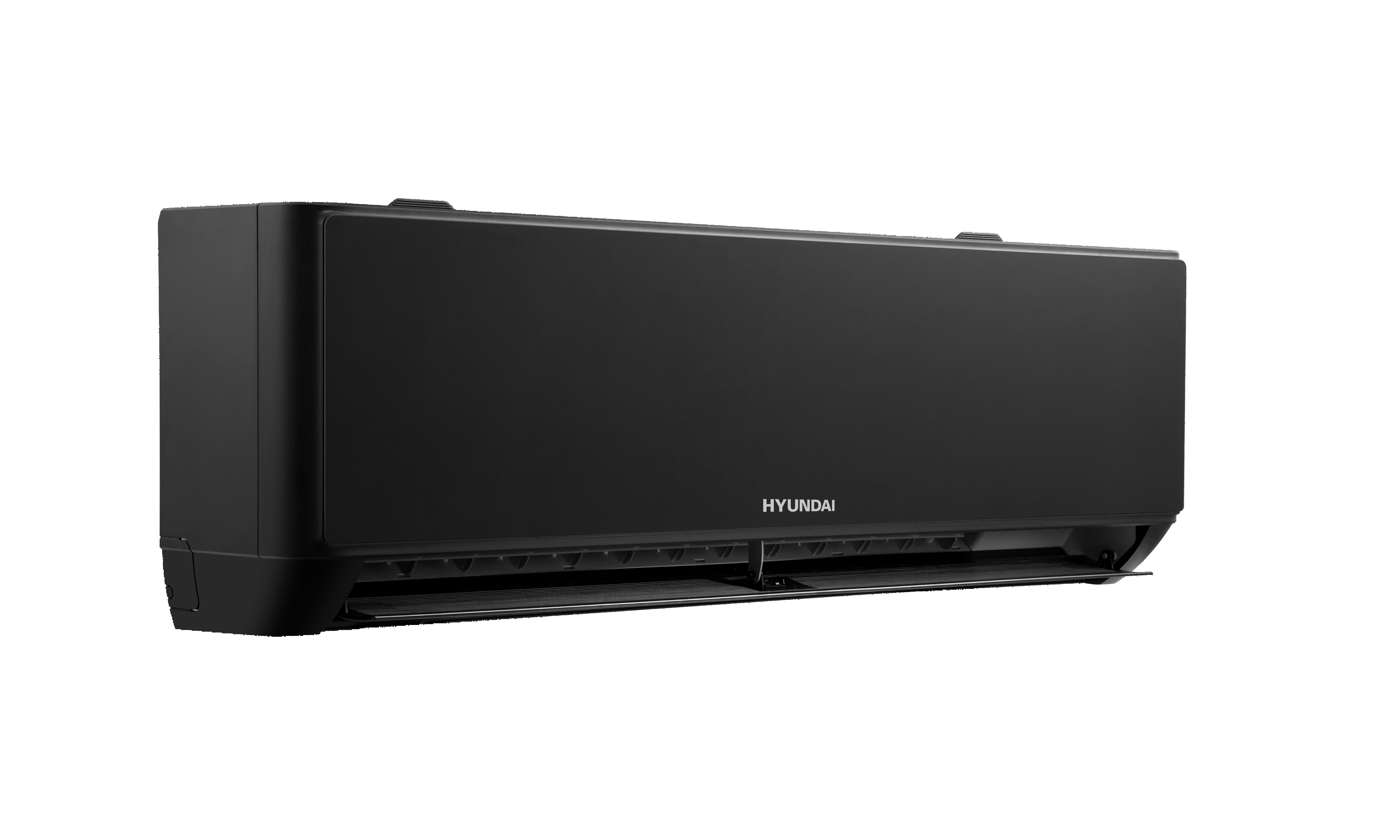

HYAC-24IBTG HYUNDAI Inverter SMART AIR PRO Split AC

Where to buy

The I-MASTER Series is designed for superior comfort, energy efficiency, and smart living. Powered by advanced inverter technology, eco‑friendly R32 refrigerant, built‑in Wi‑Fi control, and an A++ energy rating, it delivers exceptional performance while helping you save on energy costs.

1. Rapid Cooling & Heating – Enjoy instant comfort with high‑speed temperature adjustment: in heating mode, outlet air warms from 20 °C to 40 °C in just 60 seconds; in cooling mode, it cools from 25 °C to 18 °C in only 30 seconds.

2. 56 °C High‑Temperature Self‑Cleaning – The evaporator is frosted to trap dirt, then defrosted to flush it away with water. A final 56 °C high‑temperature quick‑drying and sterilization process leaves the unit cleaner, more hygienic, and more efficient.

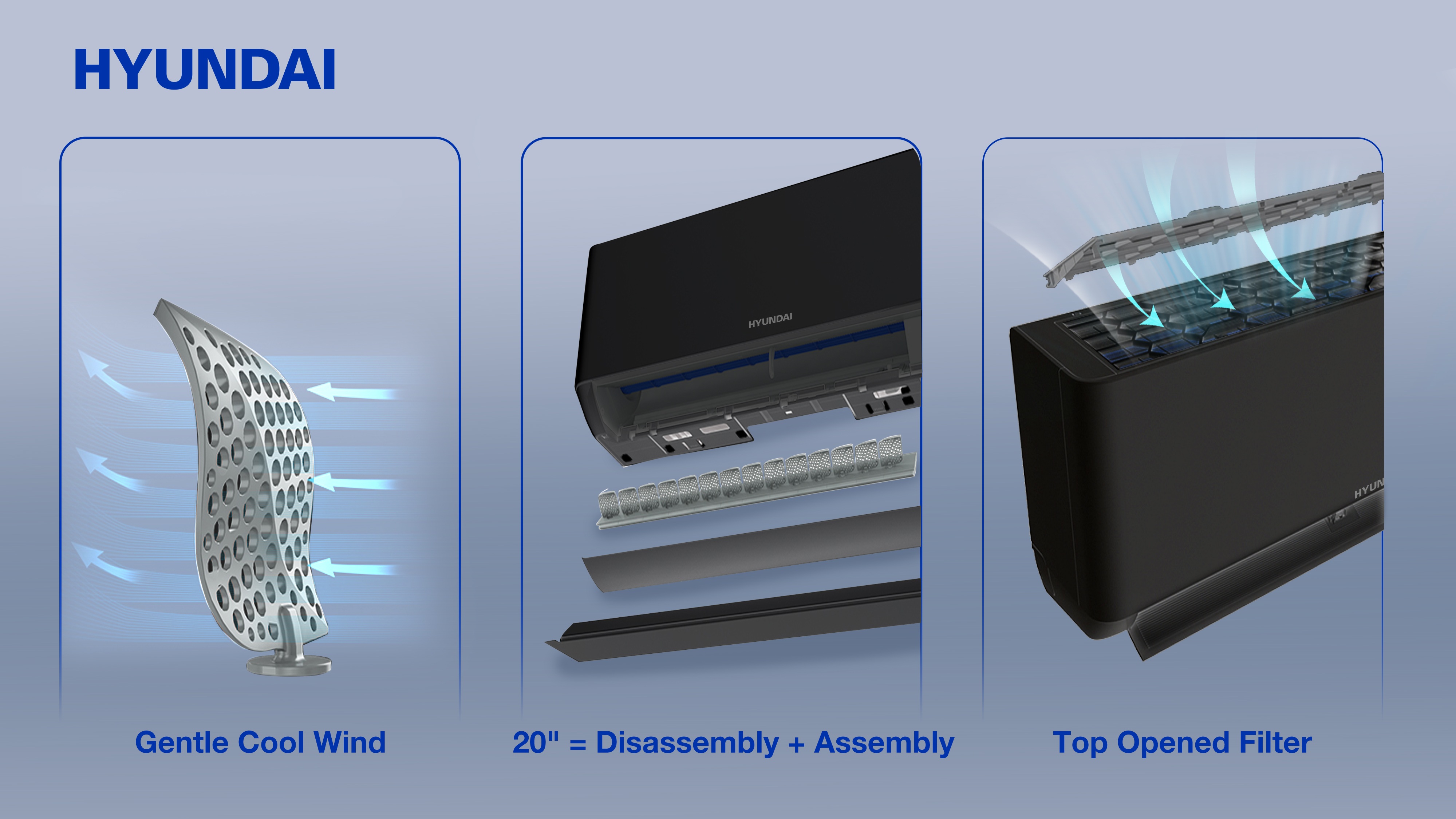

3. Smart Air Flow Modes – Gentle Cool Wind, Blanket‑Style Air Flow, Shower‑Style Air Flow, and 3D Air Supply (availability varies by model).

4. Easy Maintenance – Engineered for easy installation, and disassembly, reducing service time and costs.

5. Easy Cleaning Duct system & Cross System: Only 3 Steps Needed for a Feeper Cleaning.

learn more
Specification
产品参数
Main specifications
Refrigerant
R32
Application area (㎡)
27-45
Type
Cooling&Heating
Maximum air flow (m³/h)
1100
Capacity (BTU)
24000
Inverter
YES
Cooling capacity (W)
6840(1830-7820)
Heating capacity (W)
7050(1850-7960)
Energy efficiency class, heating
A+++
Energy efficiency class, cooling
A
Power consumption (cooling) (W)
2099(410-2800)
Power consumption (heating) (W)
1900(420-3000)
Technical Specifications
Ambient Temperature Range in Cooling (℃)
-15-53
Ambient Temperature Range in heating (℃)
-20-30
Minimum Noise Level, outdoor unit (dB)
/
Max Noise Level, outdoor unit (dB)
/
Minimum Noise Level, indoor unit (dB)
/
Max Noise Level, indoor unit (dB)
/
Equipment
Remote control
Yes
WIFI
Optional
Diameter of the Gas Pipe (inches)
3/8"
Diameter of the Liquid Pipe (inches)
1/4"
Modes
Operating modes
cooling/heating/dehumidification/ventilation
Automatic mode
YES
Dehumidification
1.8 l/h
Night mode
YES
Additional modes
silent operation, turbo mode
Dimension
Dimensions of the Outdoor Unit (mm)
920×699×380
Weight of the Outdoor Unit (kg)
40
Dimensions of the Indoor Unit (mm)
1100×333×222
Weight of the Indoor Unit (kg)
14
